Hifonics

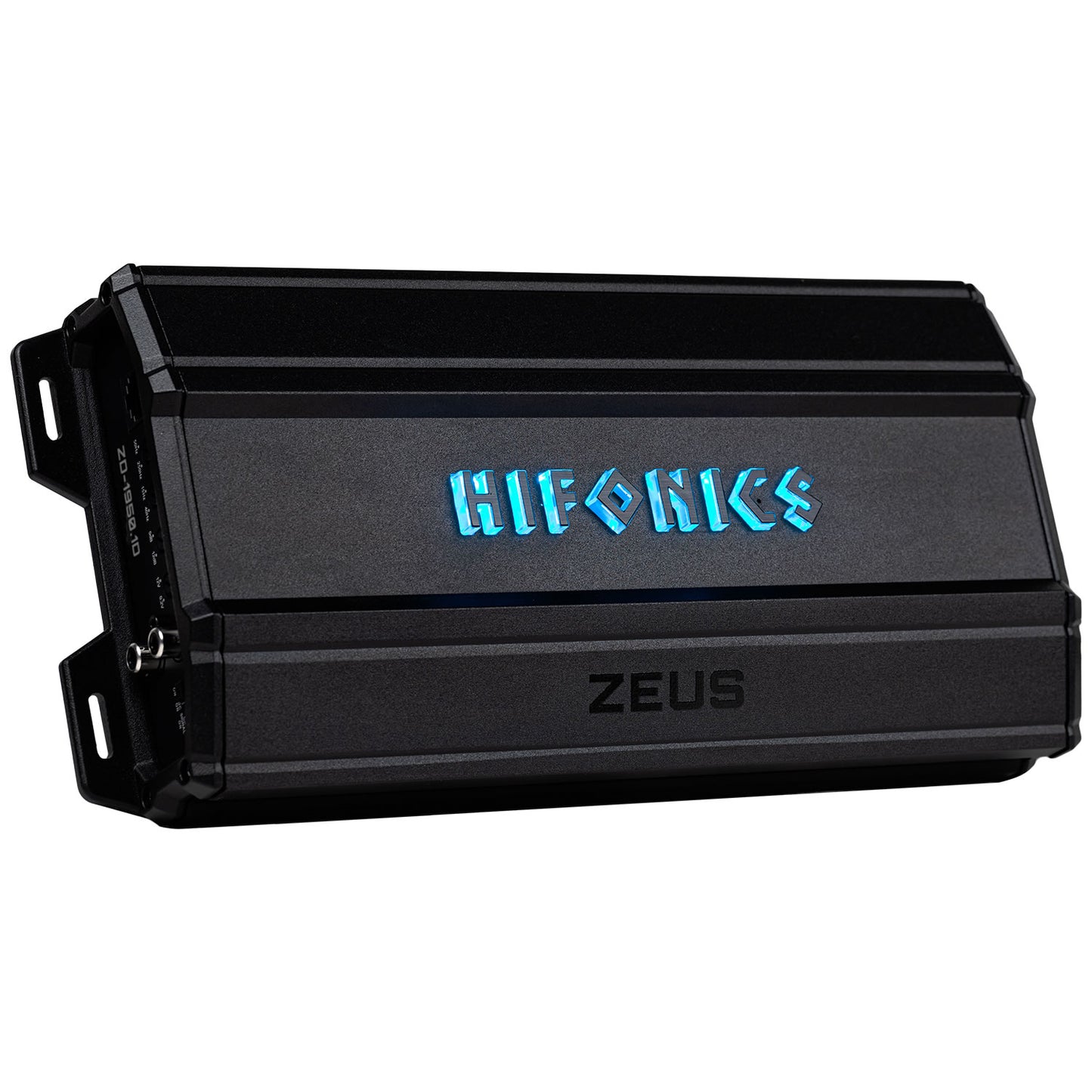

HIFONICS ZEUS DELTA 1950 WATT MONOBLOCK AMPLIFIER
- Regular price
- $229.99 USD
- Regular price
-
- Sale price
- $229.99 USD
- Unit price
- per
Couldn't load pickup availability
Hifonics ZEUS DELTA mono block amplifier delivers 1950 watts that features PWM MOSFET power supply for maximum current levels.
| Weight | 6.57 lbs |
|---|---|
| Dimensions | 15.94 × 6.89 × 3.15 in |
| Item Weight (lbs) |
5.38 |
| Item Length (in) |
12.44 |
| Item Width (in) |
5.75 |
| Item Height (in) |
2.16 |
| Type |
Amplifier |
| Brand |
Hifonics |
| Series |
ZEUS DELTA |
| Category |
Mobile |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Amp Class |
Class D |
| Amp Total Channels |
1 |
| Amp Max Power (watts) |
1950 |
| Amp Power @ 1 Ohm (ch x watts) |
1 x 1950 |
| Amp Power @ 2 Ohms (ch x watts) |
1 x 975 |
| Amp Power @ 4 Ohms (ch x watts) |
1 x 450 |

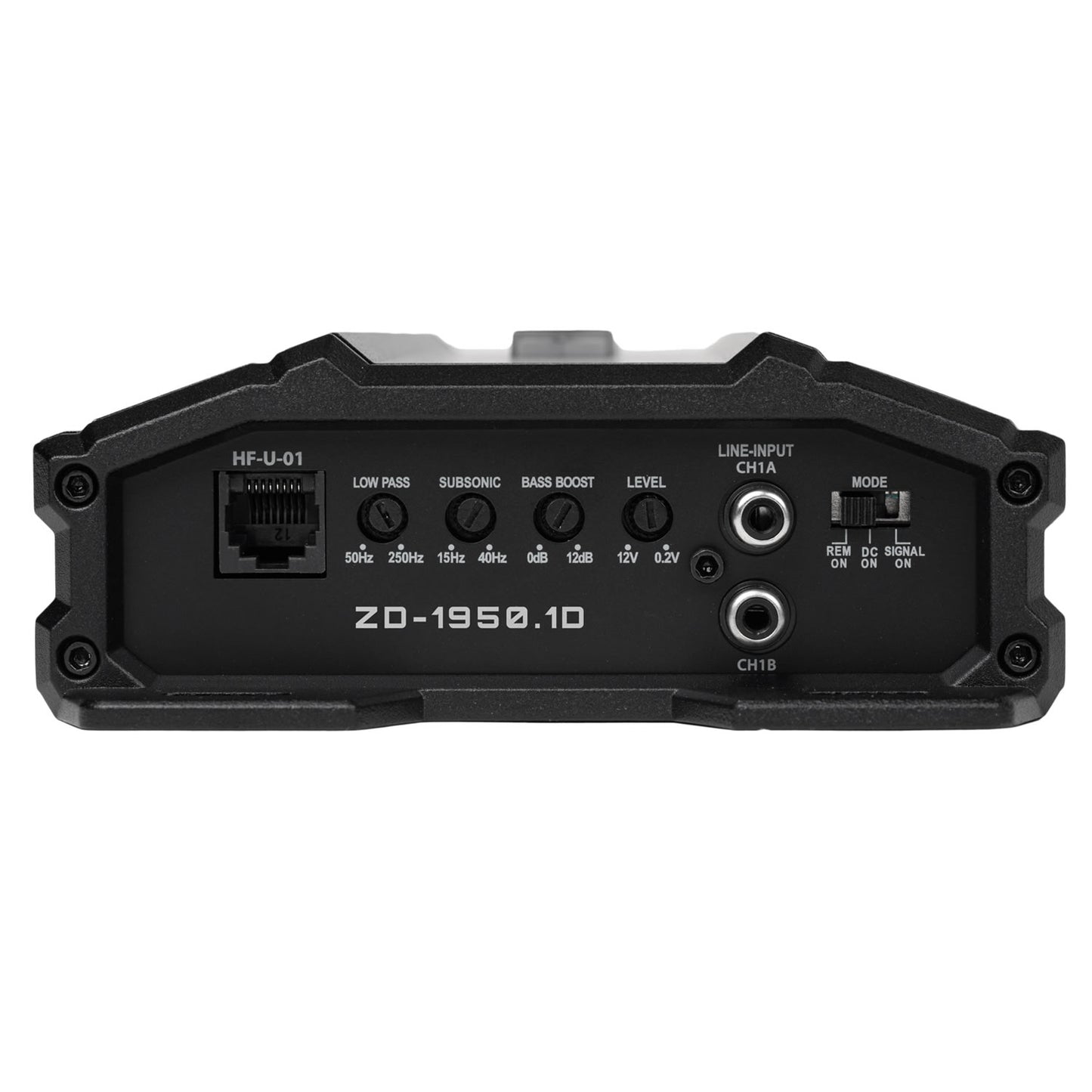

| Amp Crossover |
Variable Electronic 12dB Per Octave |
| Amp Variable Low Pass Crossover 12dB per Octave |
50Hz-250Hz |
| Amp Tone Control / Parametric EQ |
Built-in Bass Control |
| Amp Bass Boost |
0-12dB |
| Amp Subsonic Filter |
15Hz-40Hz |
| Amp Variable Voltage |
0.2-6V |
| Amp Frequency Response |
15Hz-250Hz |
| Amp Total Harmonic Distortion (THD) |
< 0.1% |
| Amp Speaker Level Audio Inputs |
Yes |
| Amp Power Terminal 12v/GND |
4 AWG |
| Amp Speaker Terminal Wire Gauge |
12 AWG |
| Amp Fusing |
External 100A |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment |
Universal |
|---|---|
| Low Noise Preamplifier Circuit |
Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs |
Nickel plated high temperature impact resistant that allow for secure connections and is erosion resistant. |
| Operation Mode |
Mono only |
| Crossover Type |
Onboard electronic crossover |
| Electronic Equalizer |
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. |
| Class / Topology |
Class D: High efficiency with big power in a small footprint. |
| Output Device Technology |
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. |
| Heat Sink |
Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation. |
| Power Supply |
Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |

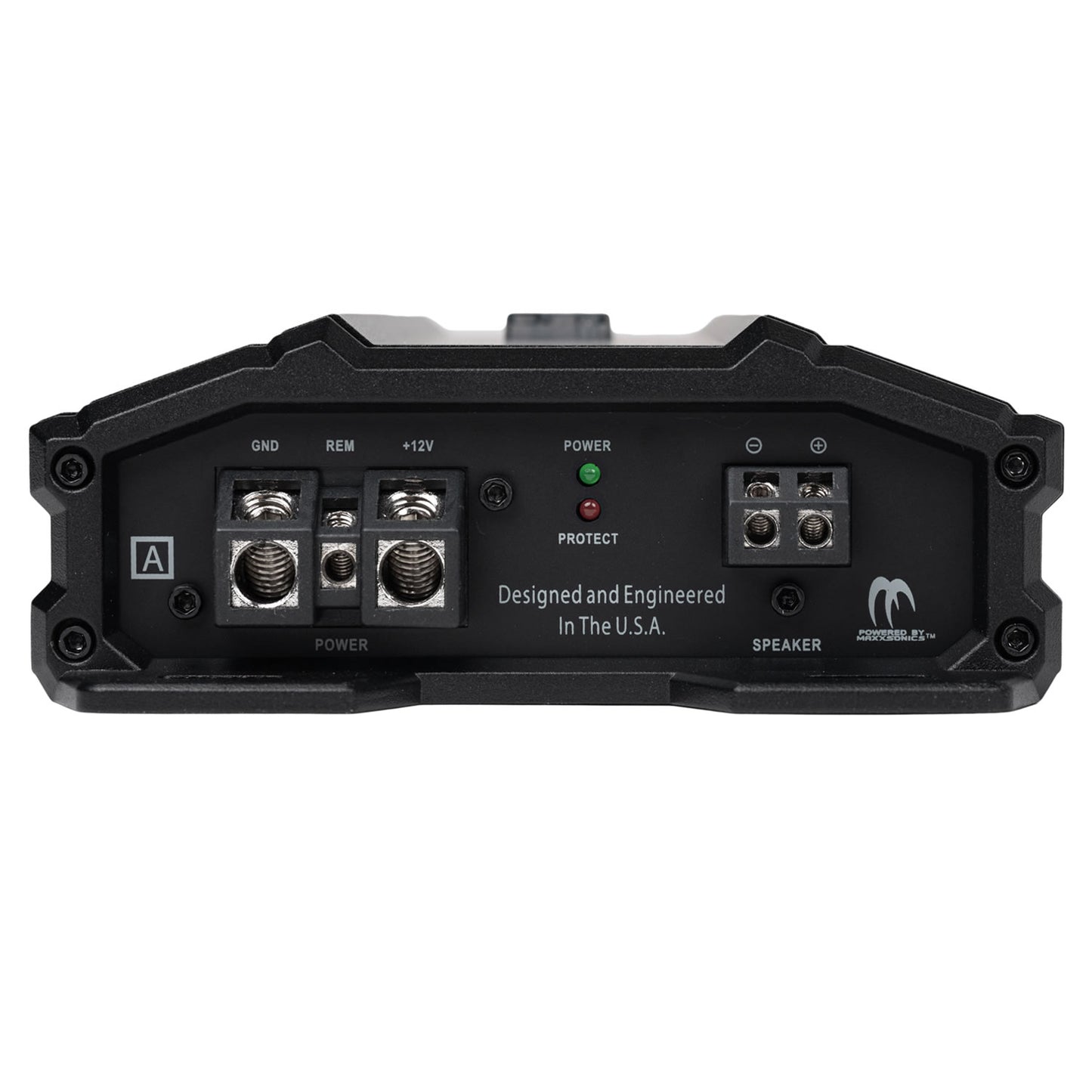

| Connection Type |
Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |
| LED System Protection Circuitry Diagnostics |
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. |
| Bass Remote Included |
Yes |
| Auto Turn-On |
DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
