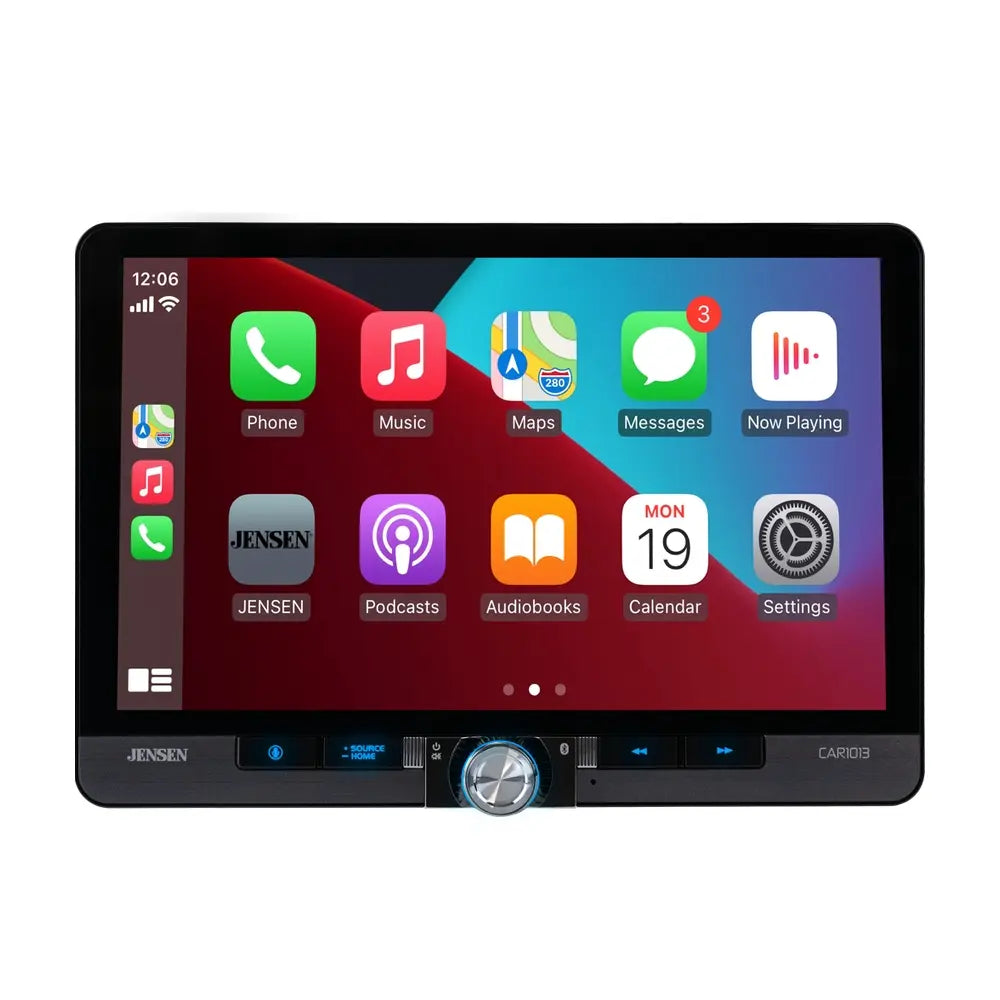

JENSEN CAR-1013 10.1" MULTIMEDIA RECEIVER

$324.99 USD
$324.99 USD
Shipping calculated at checkout.

10.1″ Receiver with Wireless Android Auto & Apple CarPlay

  • 10.1″ Capacitive Touch Screen
  • Wireless Apple Carplay and Android Auto
  • 2 Rear USB with 2.1A Charge
  • Front and Rear Camera Inputs
  • Bluetooth Connectivity

With Apple CarPlay and Android Auto, seemlessly control key phone features directly from the receiver’s touchscreen or via voice-control, significantly reducing driver distraction.

With voice-control you can ask your phone to control your messages, maps, music and phone.

Both Apple CarPlay and Android Auto launches upon connecting a compatible phone to the receiver via wirelessly or USB.

Apple CarPlay and Android Auto Certified Badges
adults celebrating in car with new car audio

Bluetooth Hands-Free Calling

Safely answer and make calls from your receiver using touchscreen icons and the included microphone.

bluetooth symbol and word

Model Features

10.1 inch touch screen icon

10″ Touchscreen

Your LCD high resolution touch screen provides a comfortable viewing experience and keeps all your favorite presets/apps within fingers reach!

front and rear camera icon

Front & Rear Camera

You have the option to install front and backup cameras. Then connect them to your car receiver so you are always aware of your surroundings as you reverse.

push to talk icon

Push-To-Talk Button

Communicates via your phone’s bluetooth connection to the radio. Interact with your smartphone’s assistant while you drive with only a push of a button.

eq presets symbol

7 Preset EQ Curves

The 7 preset EQ curves lets you tweak the audio settings to suit your listening preferences. Switch between Pop, Jazz, Rock, Flat, Classic, Beat and User.

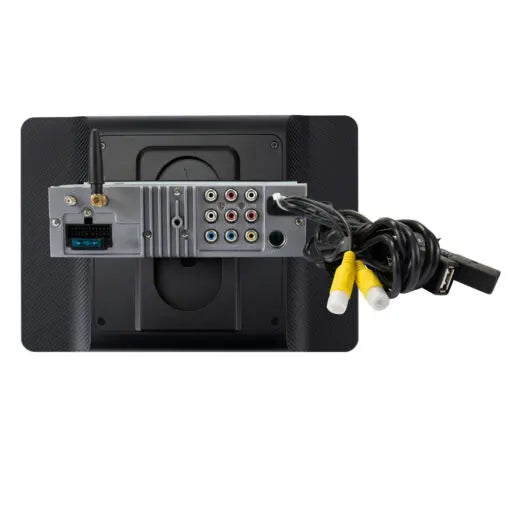

CAR1013 Rear Connections Diagram

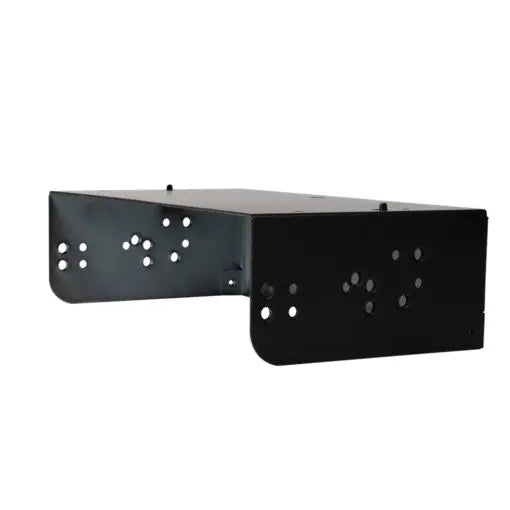

Dash Mount Adapter Allows for 1 DIN and 2 DIN Installation

Download and Print Size Guide PDF to See if it Fits Your Car

jensen 8 to 10 inch single din
jensen 8 inch receiver

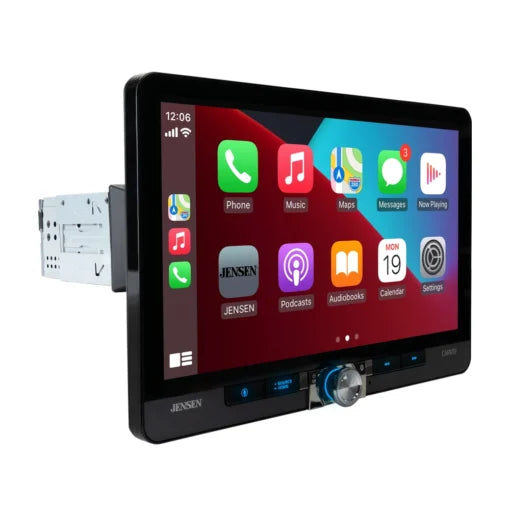

10″ Extra-Large Screen adjusts in multiple ways, making it easy to see from any angle

Playback

Digital Multimedia
Screen Size

10.1"
Peak Power

240W (60W x 4) MOSFET
Phone Connectivity

Android Auto, Android Auto Wireless, Bluetooth, CarPlay, CarPlay Wireless
Bluetooth Features

Audio Streaming, External Microphone, Hands-free Calling, Phonebook Support
Inputs

Audio / Video (Rear), Audio/Video Inputs, Front View Camera, Rear View Camera, USB (Rear), USB
USB Charge

2.1A
File Playback

FLAC, MP3
Preamp Outputs

3 Pairs of 4V Preamp Outputs (Front + Rear + Sub)
Audio Processing

Yes, Source Level Volume Control, 7 EQ Presets, 10 Band EQ
Gain Adjustment

Yes – Subwoofer Gain Control
Crossover

Built-In Subwoofer Crossover (Off/50Hz/80Hz/120Hz/160Hz)
Illumination

6 Preset Colors
Wallpapers

3 Selectable
Steering Wheel Control Compatible

Yes – Adapter Required
AM/FM Receiver

30 Station presets (18FM/12AM)
Size

Double Din, Single Din
RCA Preamp Voltage

4V
Chassis Depth

Slim Mount (4.5")
Screen Adjustments

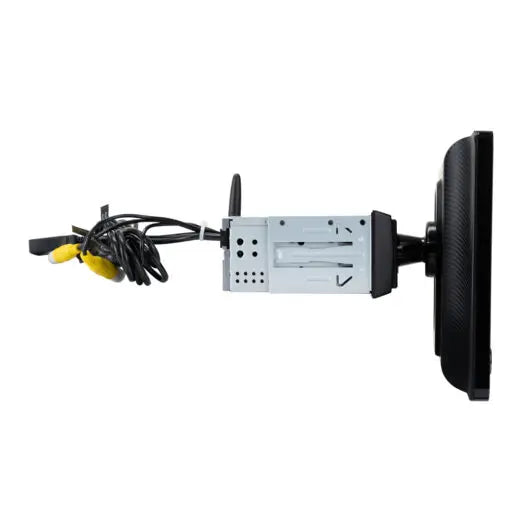

Height, Tilt and Pivot



Manuals & More

CAR1013

Firmware Update Instructions

A Note about Firmware Update via USB Devices

We recommend following the guidelines below for your USB drive:

  • Use an 8GB or 16GB USB drive from a common USB drive manufacturer.
  • Some recommended brands include:
    • SanDisk®
    • Kingston®
    • PNY®
    • Verbatim®
    • Corsair®
  • The drive should support USB 2.0 or faster transfer speeds. Older version USB 1.0 drives are not compatible.
  • Format the drive using FAT32 as the file system on your laptop or computer before copying the software update to the USB drive.

This update addresses the following:

  • Improved touchscreen response time.
  • Change the Safety Notice screen to disappear automatically after 2 seconds.
  • Change Rear Camera View settings from on to off (default: OFF).
  • Add Time Sync Settings – OFF/GPS/RDS/Phone (default: OFF).

Note: Software is not interchangeable between models. Please do not attempt this update on any model
other than the CAR1013.

How to Update:

  1. Download the firmware file from the link below.
  2. Unzip the downloaded file. Note: To unzip the file, the program WINRAR is required and can be
    downloaded from this link:
    WINRAR Download
  3. Copy the ISPBOOOT.BIN file to an empty USB Thumb Drive formatted to FAT32.
  4. Insert the USB Thumb Drive with Update Firmware into the CAR1013 USB/Charging Port.
  5. Navigate to Settings and scroll till you get to the About button on the left
    side of the menu.
  6. Press the About button and you will see on the right-hand side Software
    Update    .
  7. Press Software Update and you will see the Update button. Press
    Update to begin the firmware upgrade.
  8. Once the update is complete, remove the USB thumb drive.
  9. The update is now complete.

Download Firmware Zipped File: CAR1013 Firmware Download

To check that the update was done correctly, go to Settings and press Others and then press System Version. If you see the following information, the update was done correctly for model CAR1013.
– Version: 2.0.3
– Date: 20240311
– SDK: MJ2.2 54.0.20.0.2.6.1.0
– MCU: GD72-230712
