| Front Panel |
Touchscreen |
|---|---|
| Phone Connectivity |
Bluetooth, CarPlay, Android |
| Satellite Radio |
SiriusXM Ready (Tuner Required) |
| Bluetooth Features |
Audio Streaming, External Microphone, Hands-free Calling, Phonebook Support, Voice Activation Button |
| AM/FM Receiver |
30 Station presets (18FM/12AM), RDS |

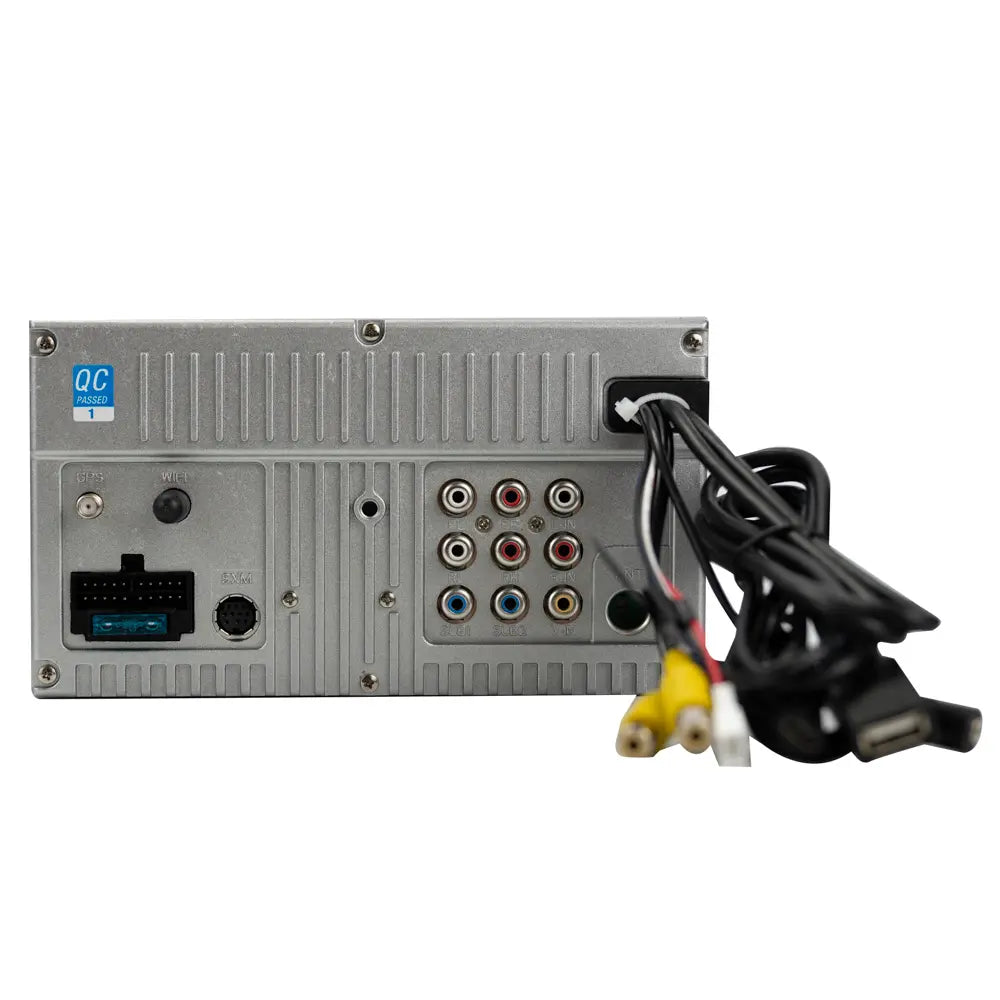

| Inputs |
Audio / Video (Rear), Front View Camera, Rear View Camera, USB x 2 (Rear) |
| Preamp Outputs |
3 Pairs of 4V Preamp Outputs (Front + Rear + Sub) |
| USB Charge |
2.1A |
| File Playback |
FLAC, MP3 |
| Playback |
Digital Audio, Digital Multimedia |
| Audio Processing |
7 EQ Presets, 10 Band EQ |
| Illumination |
6 Preset Colors |
| Steering Wheel Control Compatible |
Yes – Adapter Required |
Firmware Update Instructions
A Note about Firmware Update via USB Devices
We recommend following the guidelines below for your USB drive:
- Use an 8GB or 16GB USB drive from a common USB drive manufacturer.
- Some recommended brands include:
- SanDisk®
- Kingston®
- PNY®
- Verbatim®
- Corsair®
- The drive should support USB 2.0 or faster transfer speeds. Older version USB 1.0 drives are not compatible.
- Format the drive using FAT32 as the file system on your laptop or computer before copying the software update to the USB drive.
Note: Software is not interchangeable between models. Please do not attempt this update on any model
other than the CAR714MW.
How to Update:
- Download the firmware file from the link below.
- Unzip the downloaded file. Note: To unzip the file, the program WINRAR is required and can be
downloaded from this link:
WINRAR Download - Copy the
ISPBOOOT.BINfile to an empty USB Thumb Drive formatted to FAT32. - Insert the USB Thumb Drive with Update Firmware into the CAR714MW USB-A Port.
- Navigate to Settings and scroll till you get to the About button on the left
side of the menu. - Press the About button and you will see on the right-hand side Software
Update. - Press Software Update and you will see the Update button. Press
Update to begin the firmware upgrade. - Once the update is complete, remove the USB thumb drive.
- The update is now complete.
This update addresses the following:
- Improves settings issue of iDatalink Maestro Module

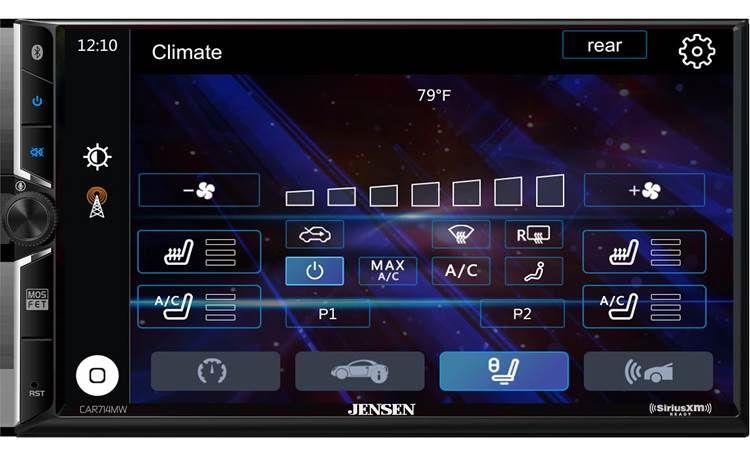

- This firmware fixes a Climate Control lock-up issue.

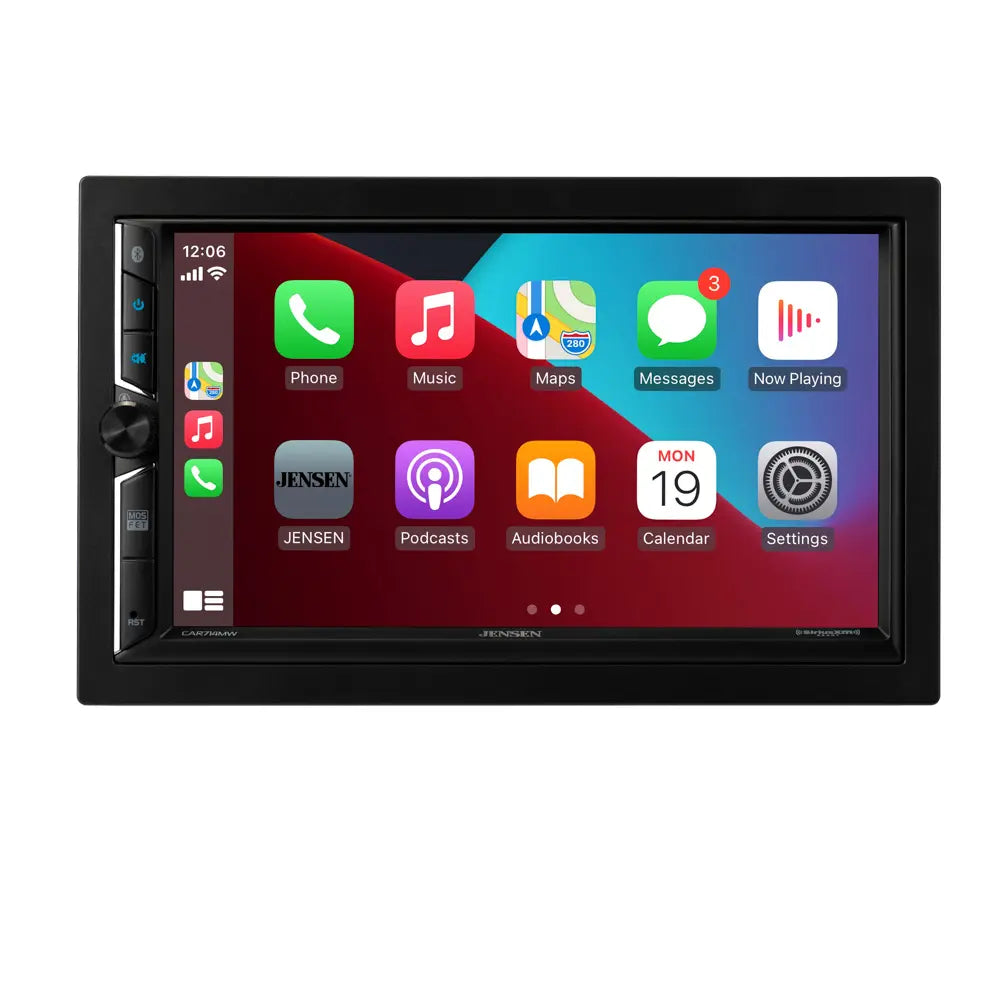

- Fixes the auto Dark Mode while using Apple CarPlay
Download Firmware Zipped File: CAR714MW Firmware Download
