ORION CAR AUDIO XTR SERIES 1500.2 2 CHANNEL AMPLIFIER

ORION XTR1500.2 XTR Series 1500W RMS 2-Channel Class-AB Amplifier

Unleash Auditory Excellence
The ORION XTR1500.2 XTR Series 1500W RMS 2-Channel Class-AB Amplifier sets the stage for remarkable audio performance. With advanced features and precision engineering, this amplifier transcends traditional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.

Immersive Sound Reproduction
Rediscover your music in its purest form. Every note, beat, and melody – from the gentlest to the most intense – is meticulously reproduced for an immersive and authentic listening experience.

Power and Precision Combined
Experience your music with unparalleled power and precision. The ORION XTR1500.2 XTR Series Amplifier seamlessly integrates commanding power with exceptional audio quality, creating an auditory masterpiece that resonates deeply.

Elevate Your Drive
Step into a world of sonic brilliance with the ORION XTR1500.2 XTR Series 1500W RMS 2-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.

Class AB Amplification - Experience the optimal synergy of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
1500 Watts RMS - Immerse yourself in a realm of audio excellence with 1500 Watts RMS, delivering robust and clear sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter

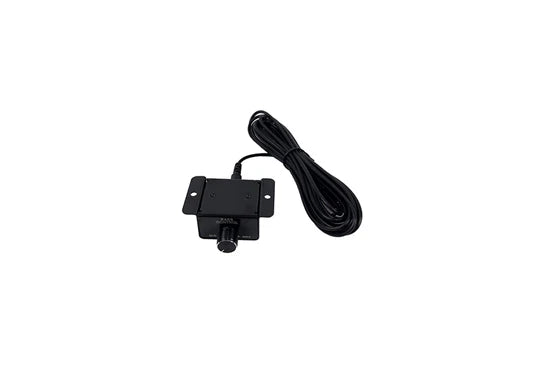

Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 425
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 750W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 1500W

 POWER TERMINAL MANAGEMENT
  Positive Terminals: 1 x 0 AWG.
  Negative Terminals: 1 x 4 AWG.
  Remote Turn-ON Signal: 10 AWG.
  Speaker Output Terminals: 12 AWG.

- Frequency Response: 10Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >80%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 150A recommended
- Dimensions (L x W x H): 17.32" x 9.25" x 2.75" (440x235x70mm)
