Stetsom

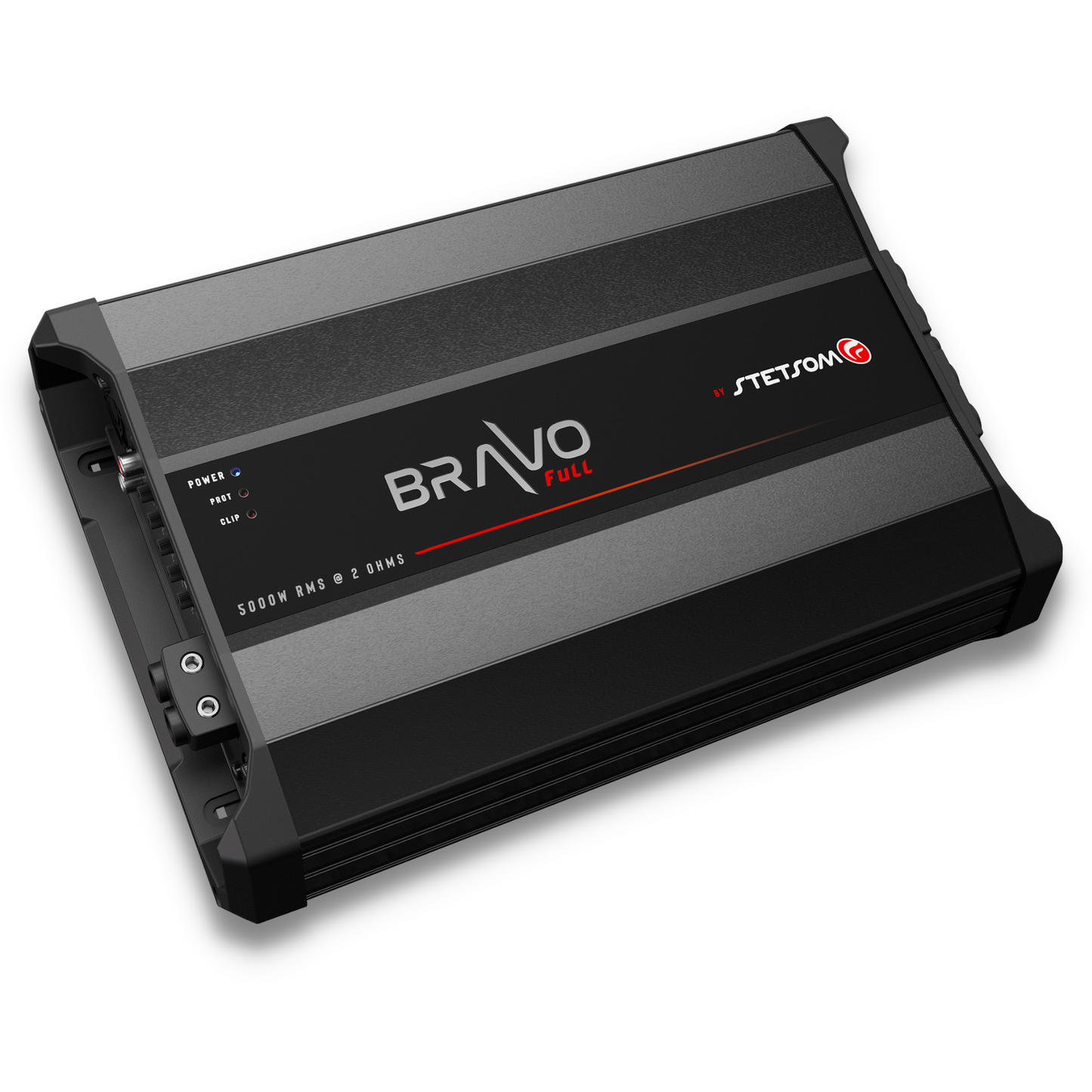

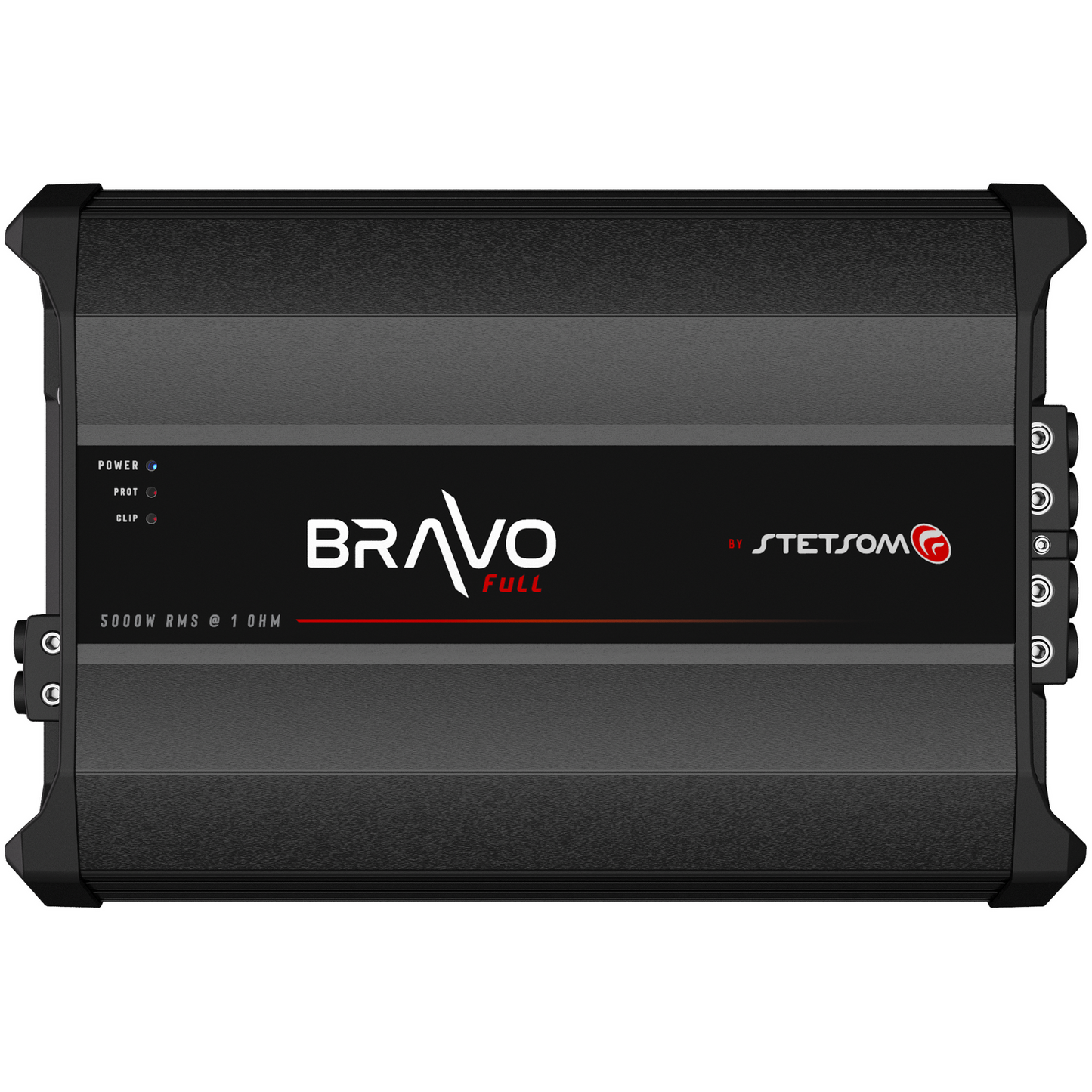

STETSOM BRAVO FULL SERIES 5000 WATT AMPLIFIER

$469.99 USD
$469.99 USD
Shipping calculated at checkout.
Impedance

Stetsom Bravo Full Series 5000 Watt Digital Full Range Amplifier - Monoblock - Class D - 1 Ohm or 2 Ohm - Free Shipping

The BRAVO FULL line was developed for automotive sound lovers who seek maximum performance in FULL-RANGE amplifiers.

Its frequency response from 10Hz to 12kHz offers audio quality and definition, and can be used with subwoofers, drivers, and tweeters.

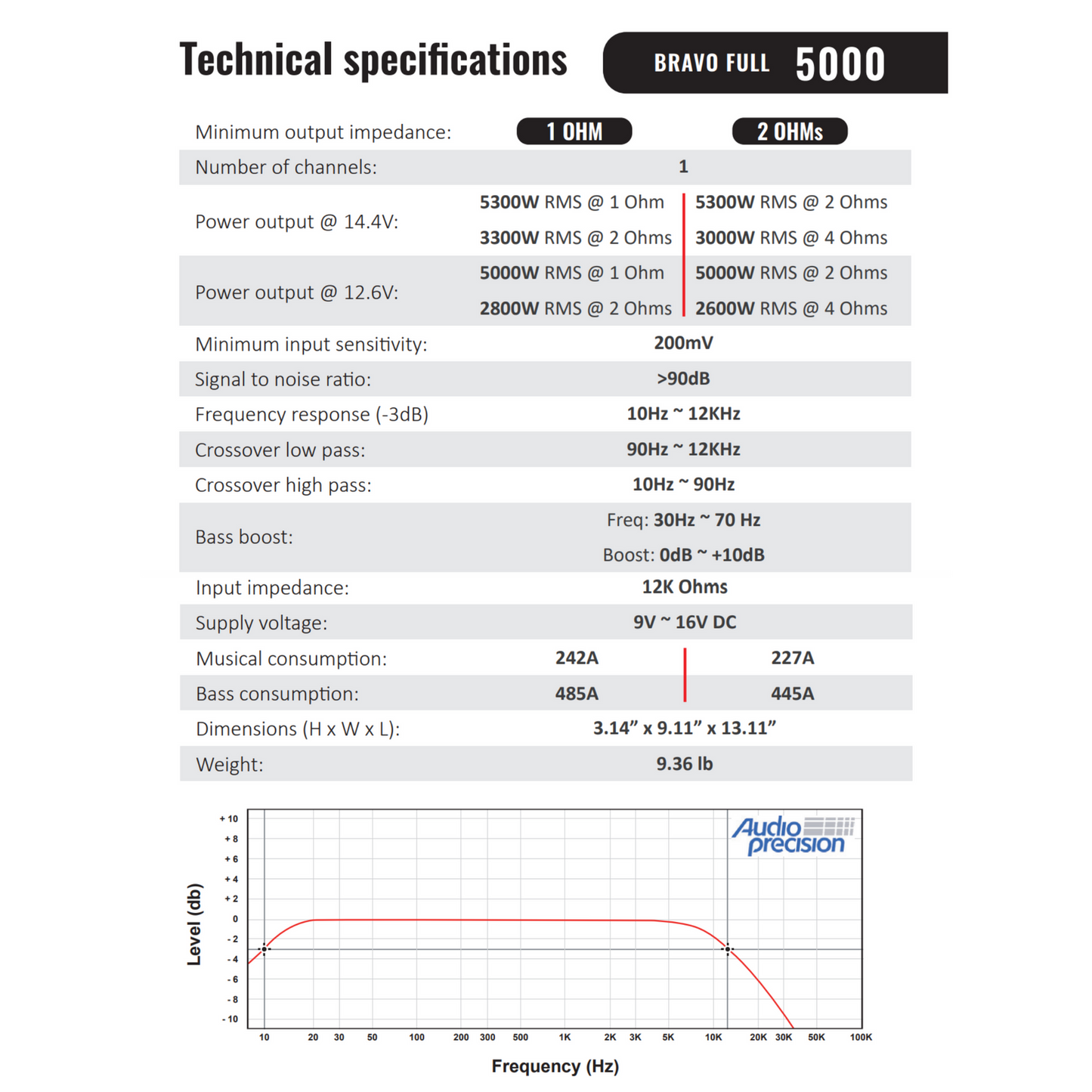

Technical Specifications (1 Ohm)

Number of Channels 1
RMS Power at 1 Ohm @ 14.4V 5300W
RMS Power at 2 Ohms @ 14.4V 3300W
RMS Power at 1 Ohm @ 12.6V 5000W
RMS Power at 2 Ohms @ 12.6V 2800W
Minimum input sensitivity 200mV
Signal to noise ratio >90dB
Frequency response (-3dB) 10Hz ~ 12KHz
Crossover low pass 90Hz ~ 12KHz
Crossover high pass 10Hz ~ 90Hz
Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance 12K Ohms
Supply voltage 9V ~ 16V DC
Musical/Bass consumption 242A/485A
Dimensions (H x W x L) 3.14" x 9.11" x 13.11"
Weight 9.36 lb
--
