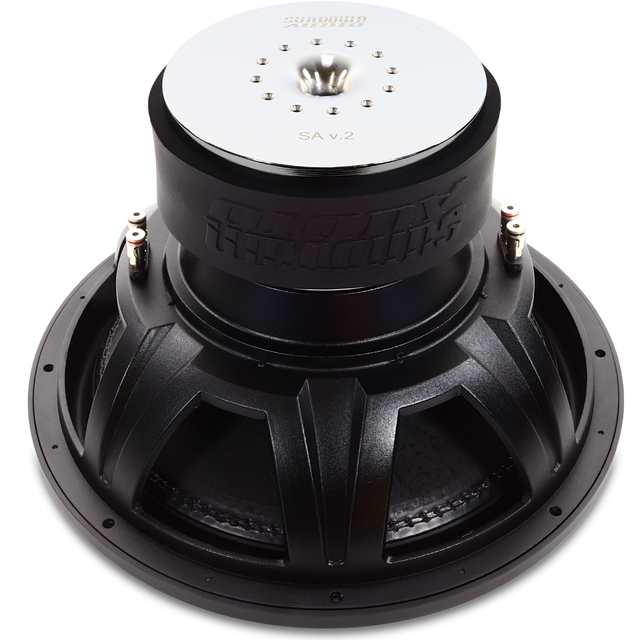

SUNDOWN AUDIO SA SERIES V2 15" SUBWOOFER
- Regular price
- $409.99 USD
- Regular price
-
- Sale price
- $409.99 USD
- Unit price
- per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Sundown Audio SA Series V2 15" Subwoofer - D2 or D4 - 1000 Watts - Free Shipping
- Xmax = 19mm one-way by 70% BL
- RMS Power = 1000-watts
- Vented magnetic gap
- Optimized high-velocity pole vent
- Innovative high-velocity vented frame spacer ring
- Black Aluminum 2.75” voice coil former for superior heat dissipation
- High Temperature copper voice coil wire
- Large aluminum faraday ring (Magnet ID)
- Spring Loaded Terminals
- Stitched-On Double “XL” Tinsel Leads to prevent fatigue and failure
- High strength cast aluminum frame
- Optimized for small ported, sealed, & band-pass enclosures
SA V.2 15"
| T/S SPECS | SAV2 15″ D2 | SAV2 15″ D4 |
|---|---|---|
| RE (Ohms) | 3.89 | 5.83 |
| FS (Hz) | 36.8387 | 37.4160 |
| VAS (L) | 51.9387 | 45.3391 |
| Qes | 0.5847 | 0.6963 |
| Qms | 5.1005 | 5.7094 |
| Qts | 0.5245 | 0.6206 |
| Le (mH) | 3.6326 | 4.7903 |
| BL (NA) | 24.4656 | 29.1578 |
| Mms (Grams) | 388.9706 | 431.9464 |
| Cms (uM/N) | 47.9860 | 41.8886 |
| Sens (dB @ 1w/1m) | 88.22 | 87.08 |
SA V.2 15"
| Sealed Enclosure | 2.0 cu ft |
| Ported Enclosure | 3.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 44 sq in |
| Displacement | |
| Depth | 8.65" |
| Outside Diameter | 15.59″ |
| Cut-Out | 14.01″ |
| Physical Dimensions | Download |
