Sundown Audio

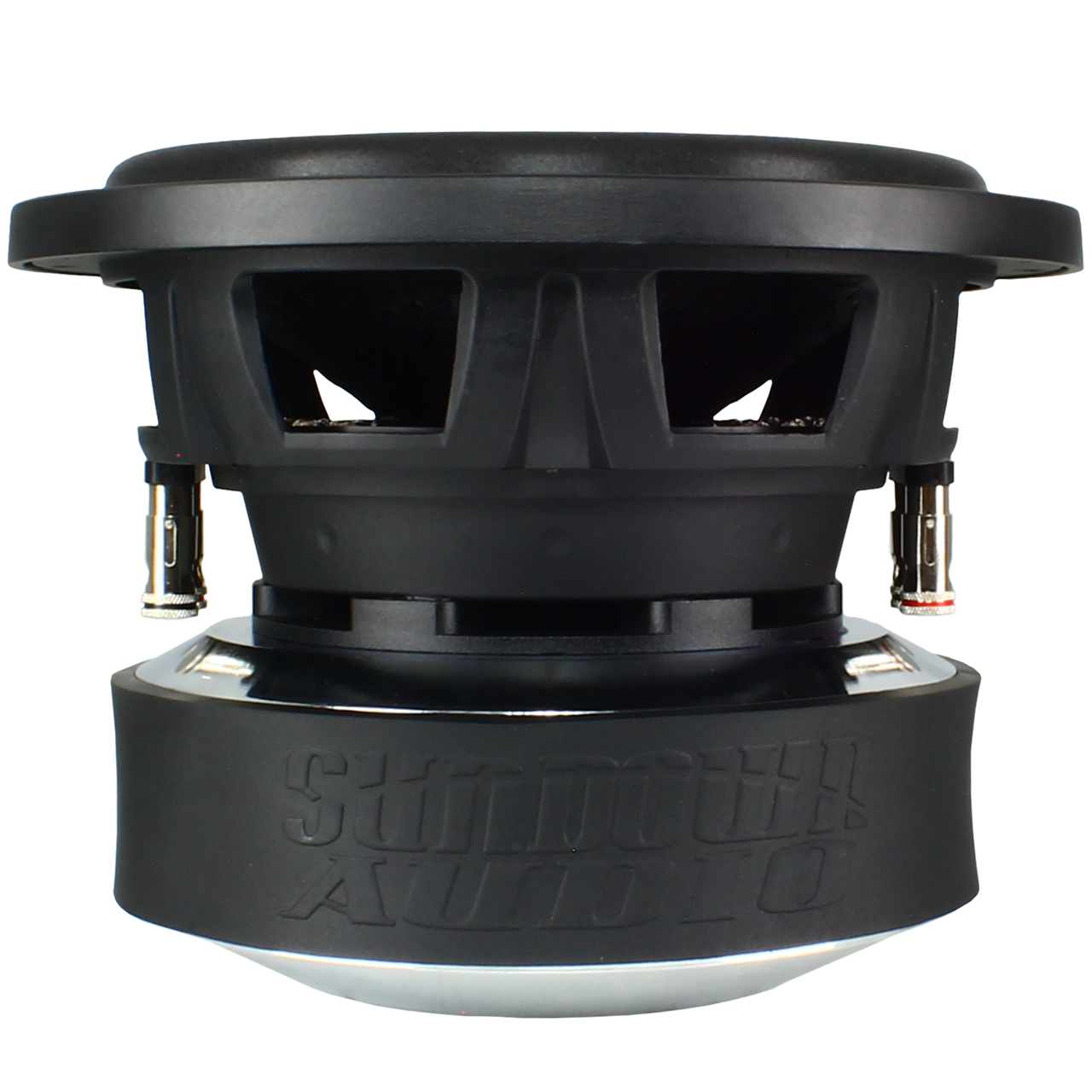

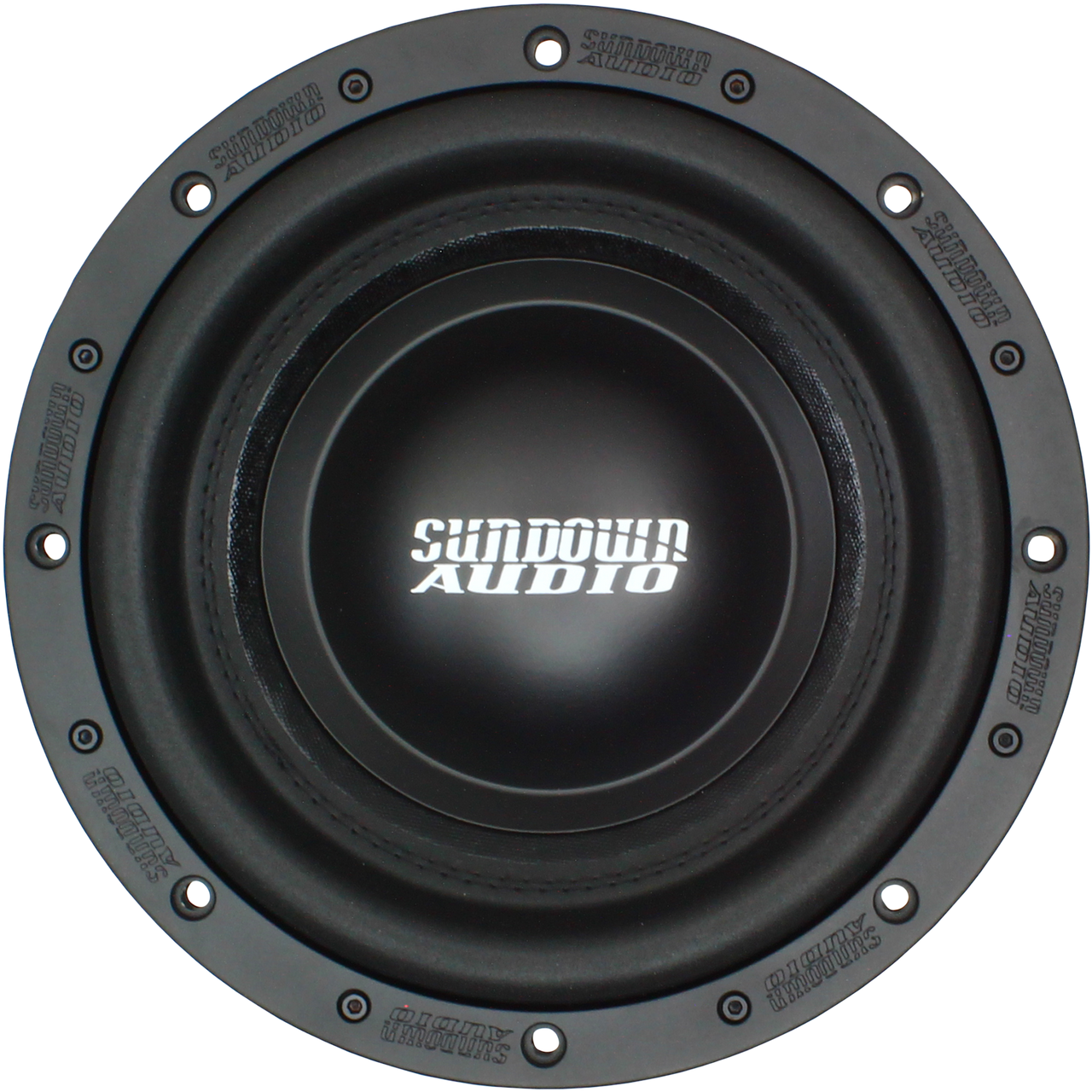

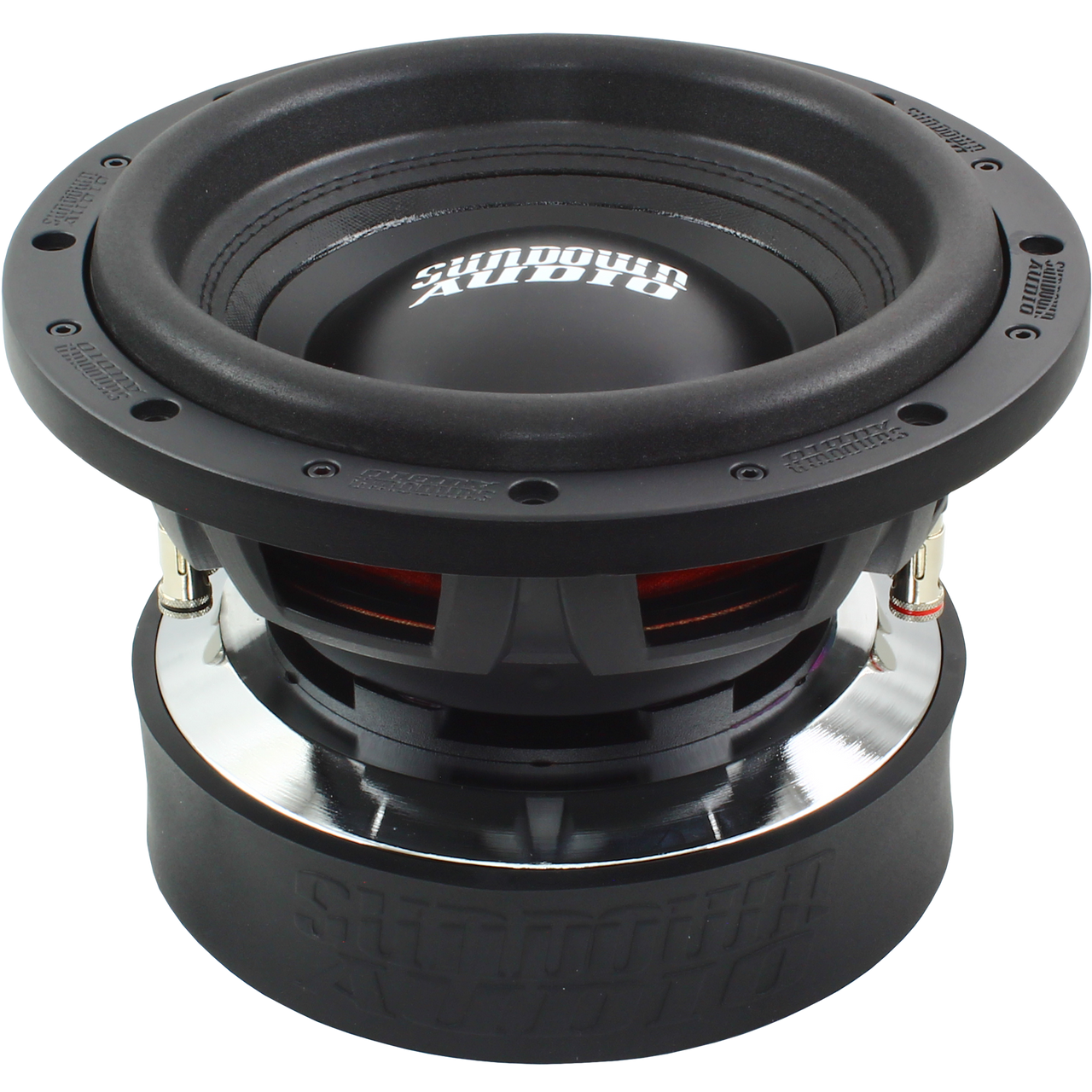

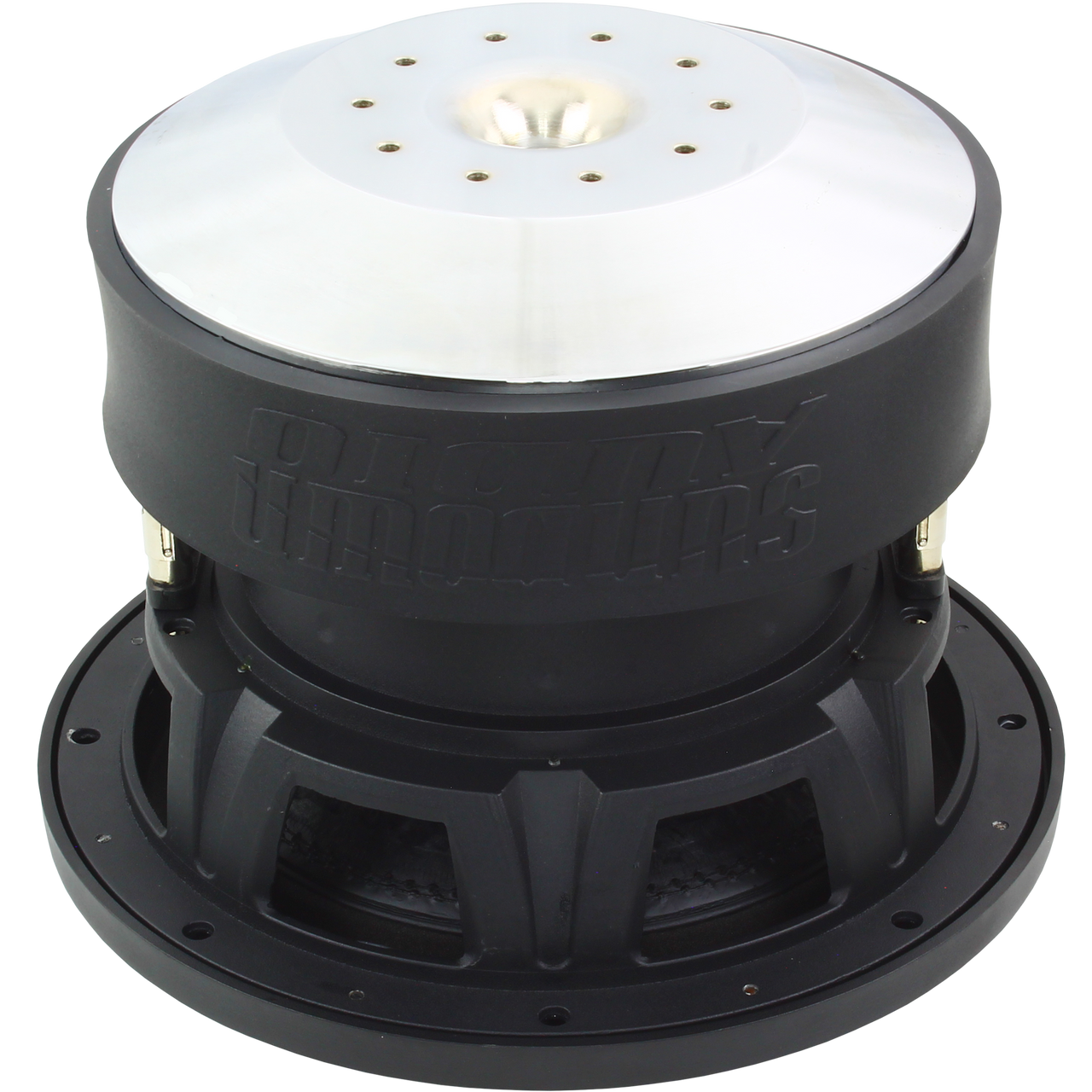

SUNDOWN AUDIO U SERIES V2 10" SUBWOOFER
- Regular price
- $489.99 USD
- Regular price
-
- Sale price
- $489.99 USD
- Unit price
- per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features (U-10 / 12 / 15 / 18)
- Black Aluminum 3” voice coil former for superior heat dissipation
- High Temperature Round-Wire CCAW voice coil with high-temp black adhesive
- Double stitched surround
- Heavy duty cast basket
- Spring loaded terminals accept up to 8 gauge
- Stitched-on double-XL tinsel leads
- Rear vented pole piece
- Rear drilled gap-venting
- Innovative high-velocity cast aluminum vented frame spacer ring
- Magnet ID shorting ring
- Top-Plate Cooling Channels
- Cast Aluminum surround bolt-on rings
- Optimized for small ported or bandpass enclosures
U-10
| T/S SPECS | U 10" D2 | U 10" D4 |
|---|---|---|
| RE (Ohms) | 3.8 | 6.1 |
| FS (Hz) | 48.5 | 41.1 |
| VAS (L) | 8.3 | 11.5 |
| Qes | 0.35 | 0.39 |
| Qms | 3.20 | 3.21 |
| Qts | 0.32 | 0.35 |
| Le (mH) | 2.56 | 3.71 |
| BL (NA) | 26.8 | 29.7 |
| Mms (Grams) | 216.3 | 219.7 |
| Cms (uM/N) | 0.05 | 0.07 |
| Sens (dB @ 1w/1m) | 86.2db | 84.9db |
U-10
| Sealed Enclosure | 0.5 cu ft |
| Ported Enclosure | 1.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 16 sq in |
| Displacement | 0.21 cu ft |
| Depth | 7.007″ |
| Outside Diameter | 10.94″ |
| Cut-Out | 9.17″ |
