Sundown Audio

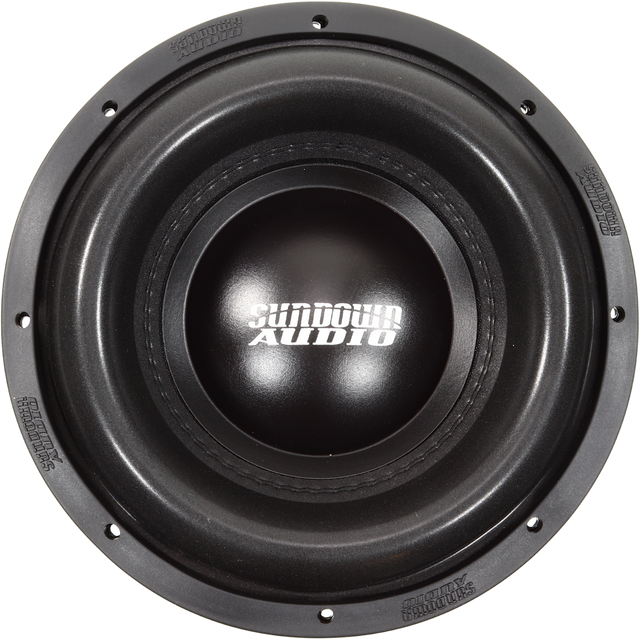

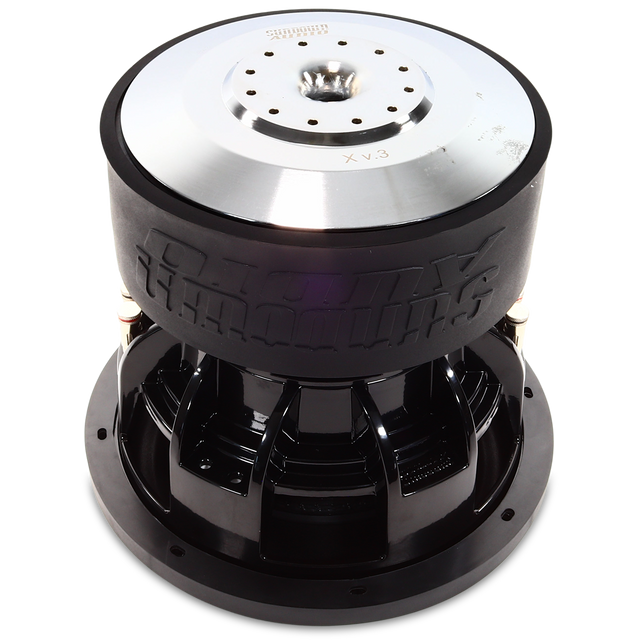

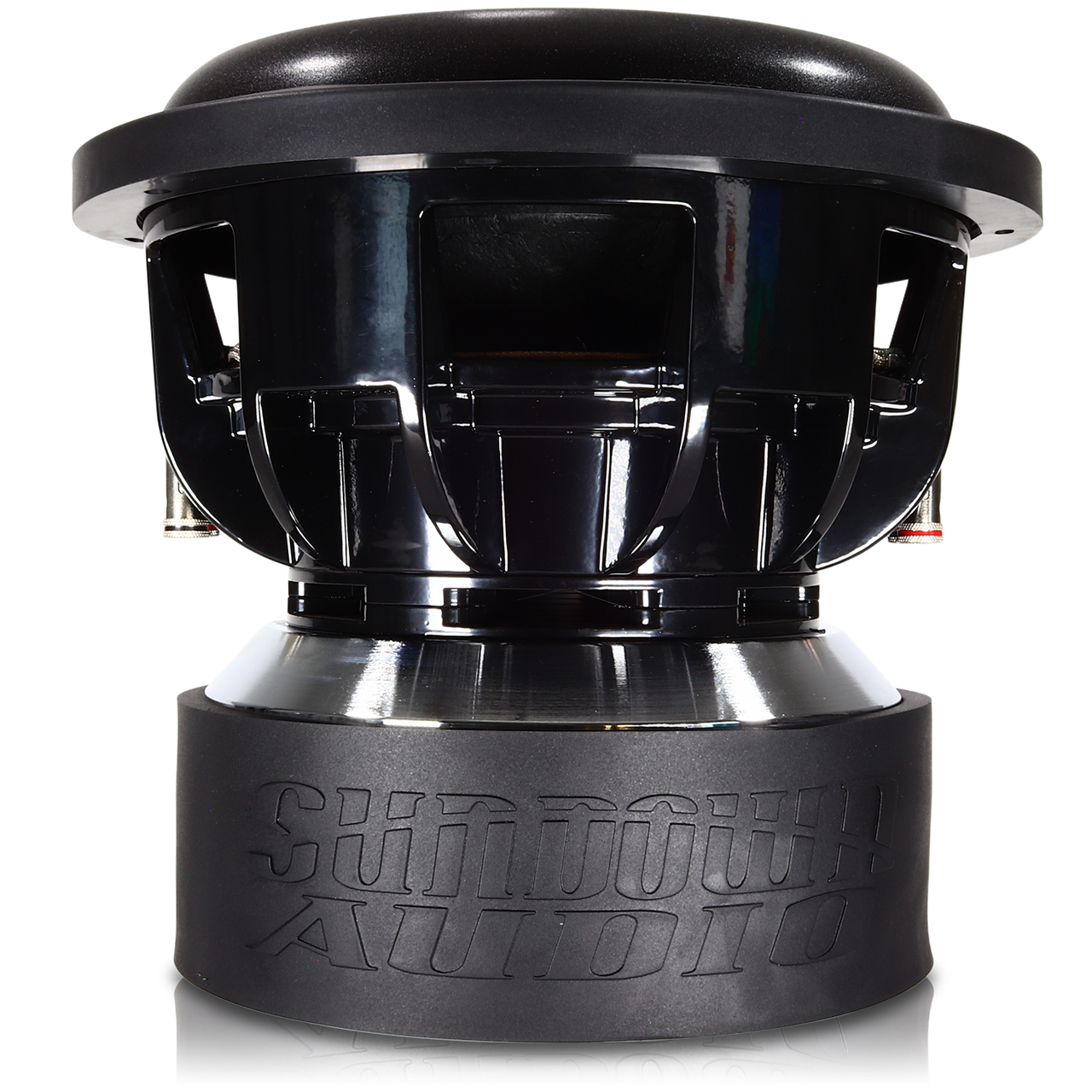

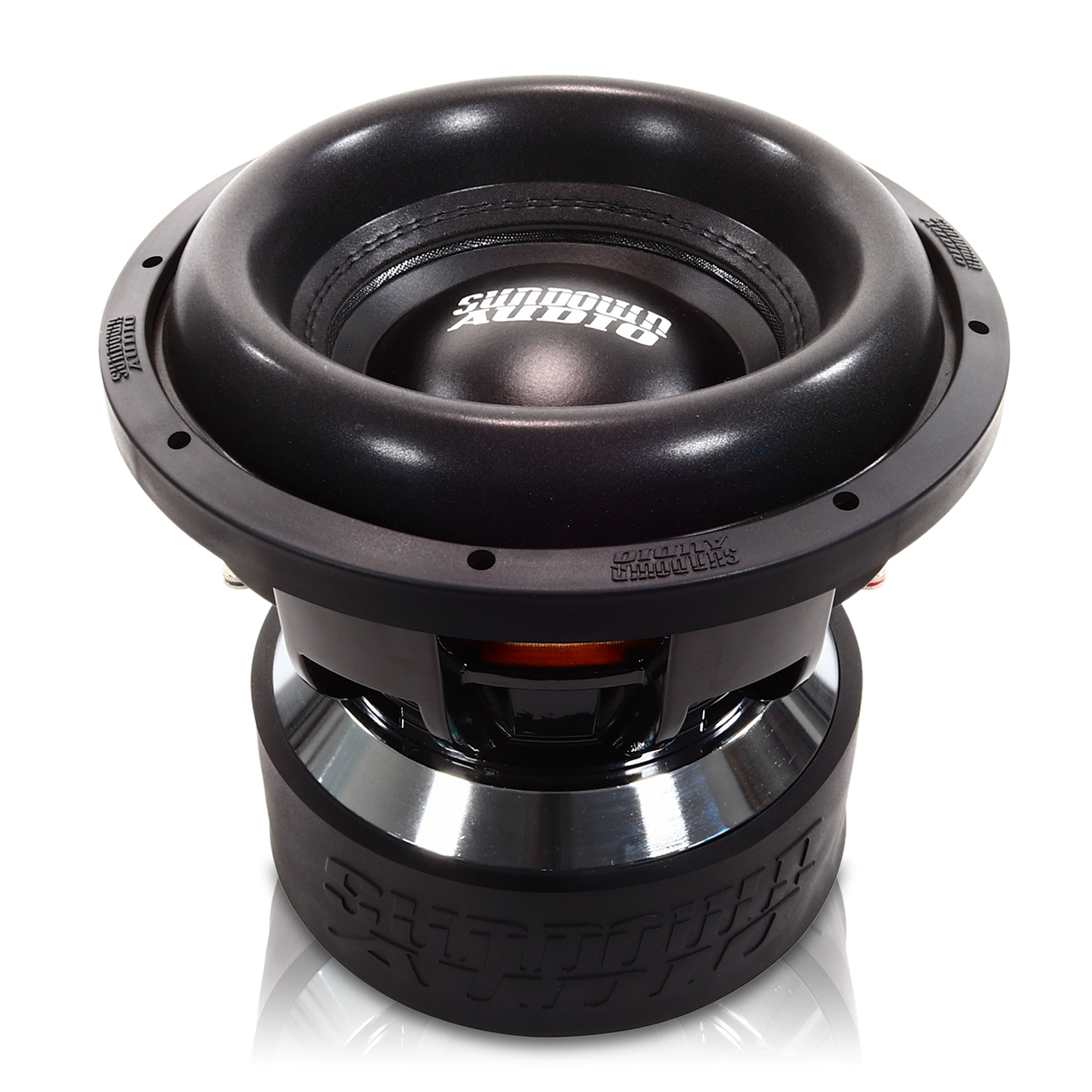

SUNDOWN AUDIO X SERIES V3 10" SUBWOOFER

$629.99 USD
$629.99 USD
Tax included. Shipping calculated at checkout.
Impedance

Sundown Audio X Series V3 10" Subwoofer - D1 or D2 - 2000 Watts - Free Shipping

X V.3 10"

T/S SPECS X V.3 10″ D1 X V.3 10″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 39.104 40.208
VAS (L) 11.623 9.352
Qes 0.441 0.528
Qms 2.567 2.842
Qts 0.376 0.445
Le (mH)
BL (NA) 14.155 21.509
Mms (Grams) 256.970 302.089
Cms (uM/N) 64.465 51.867
Sens (dB @ 1w/1m) 83.8dB 82.5dB



Enclosure Specifications

  X v.3 8 X v.3 10 X v.3 12 X v.3 15 X v.3 18
Sealed Enclosure 0.3-.04cuft N/A N/A N/A N/A
Ported Enclosure 0.75-1.0 cu ft 1.5 cu ft 2.5 cu ft 4.25 cu ft 7.00 cu ft
Recommended Tuning 32hz 32hz 32hz 32hz 32hz
Recommended Port Area 12-16 sq in 24 sq in 40 sq in 68 sq in 112 sq in
Displacement 0.13 cu ft 0.21 cu ft 0.2 cu ft 0.22 cu ft 0.23 cu ft
Depth 6.8" 9.4" 10.4" 11.6" 13.6"
Outside Diam. 8.70" 11.65" 12.68" 15.51" 18.42"
Cutout 7.36" 10.01" 11.09" 13.83" 16.69"
