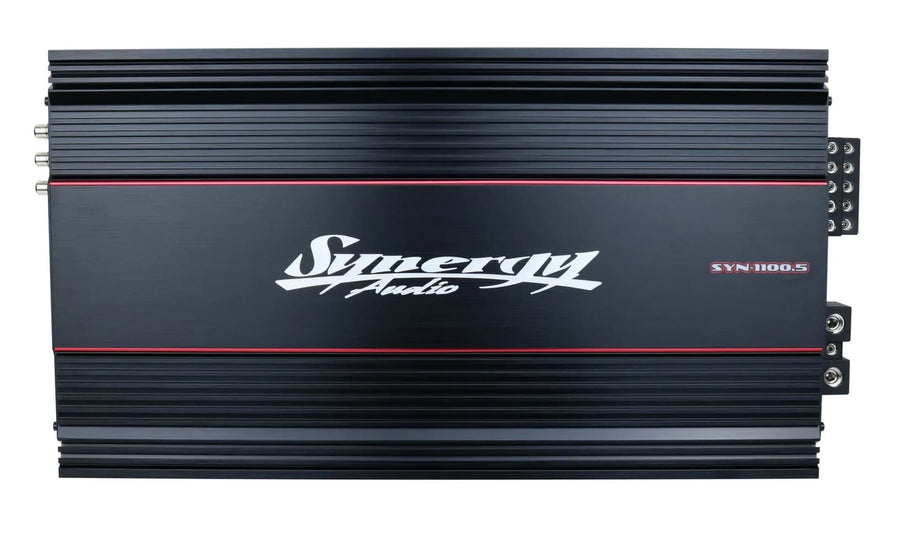

SYNERGY AUDIO SYN SERIES 1100.5 5 CHANNEL AMPLIFIER

 The Synergy Audio SYN 1100.5D world class amplifier features high end circuit design, engineering, and manufacturing, utilizing the best quality components to insure the best possible performance. We have incorporated South Korean made Samyoung Capacitors, Texas Instruments Op Amps and Ic’s, German Manufactured WIMA film and filter capacitors along with Fairchild chip sets for maximum reliability and dependability for years to come. We have also included BT 5.0 for greater installation flexibility.

The SYN series of Multi-Channel amplifiers are at home in a daily driven vehicle, all out daily ground pounding demo driver or in the SPL competition lanes.

 Synergy Audio SYN 1100.5D Specs:

• Power @ 4 Ohm: 150w x 4 @ 14.4v
• Power @ 2 Ohm: 230w x 4 @ 14.4v
• Power @ 4 Ohm Bridged: 520w x 2 @ 14.4v
• Power @ 4 Ohm: 650w  x 1 @ 14.4v
• Power @ 2 Ohm: 1050 x 1 @ 14.4v
• Power @ 1 Ohm: 1500 x 1 @ 14.4v
• Frequency Response: 20hz – 20Khz
• Signal to Noise Ratio: >85db
• Damping Factor: >200
• Subsonic Filter: 10hz – 50hz
• Low Pass Filter: 35hz – 250hz
• High Pass Filter: x1 20hz – 800hz x10 200hz – 8khz
• 0 GA Power & Ground Terminals
• 16v Working Voltage
• 6 Power Transformers
• Heavy Duty 2oz printed circuit board
• Size: 26.77” L x 9.45” W x 2.44” H

 All SYN series amplifier feature:

• Custom high mass, thermally optimized aluminum heat sink casing
• Overbuilt power supplies and output sections utilizing high grade components

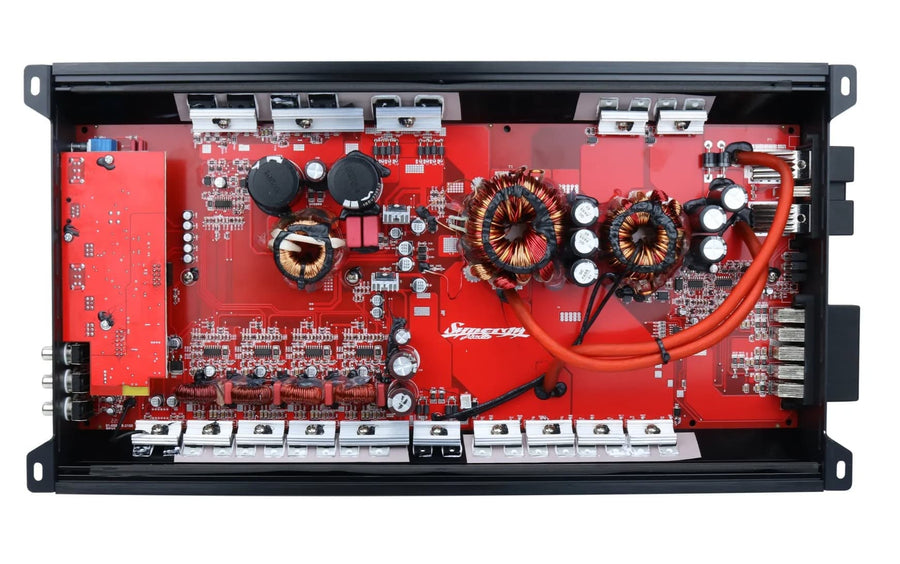

• Heavy duty double sided through hole PCB’s with thick solid copper heavy duty traces
• Nickel plated Locking Tiffany RCA inputs/outputs

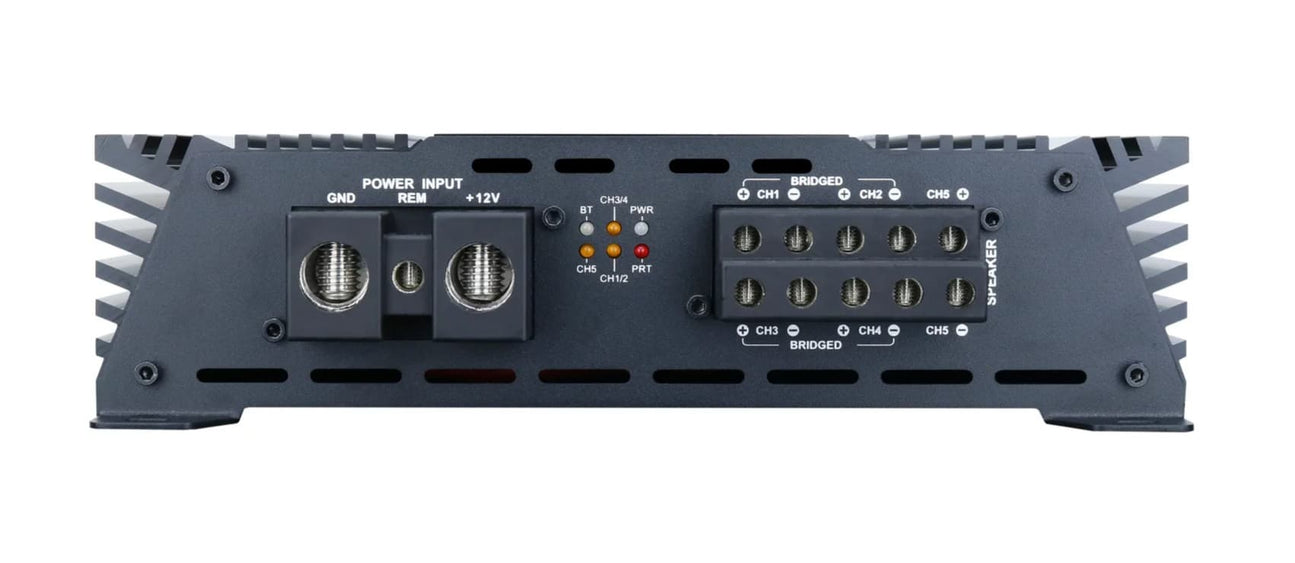

• Single 1/0 and 4 gauge nickel plated power and ground inputs
• Nickel plated 8 gauge speaker outputs

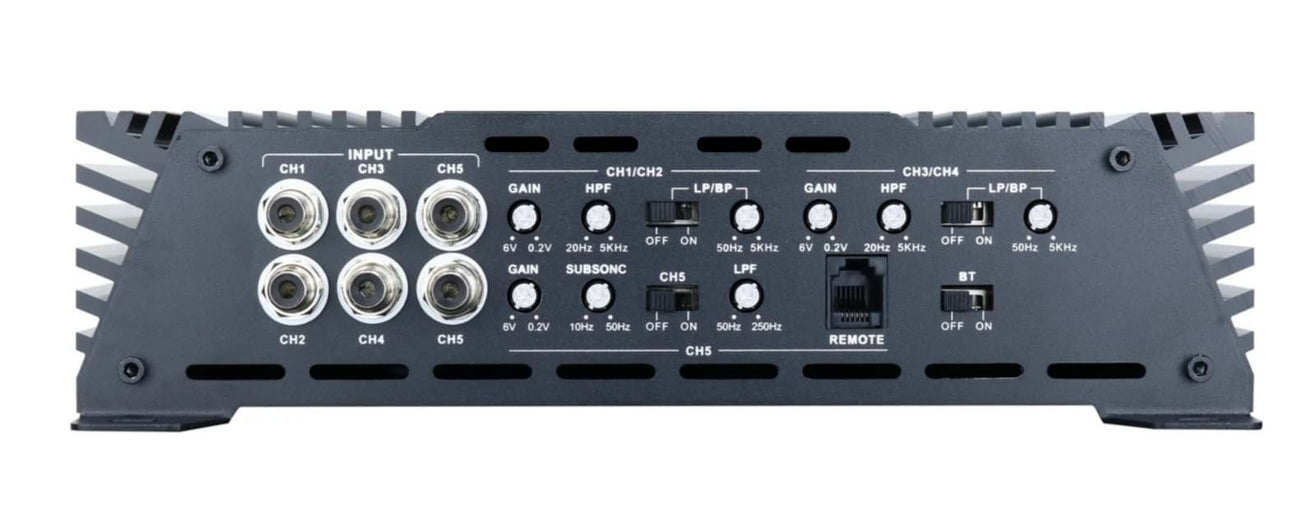

• Input sensitivity 6V – 200mV
• +18db Remote Gain control with power and clipping indicator lights
• Multi-way fully intelligent circuitry for maximum protection
