SYNERGY AUDIO WFO SERIES 3500 WATT MONOBLOCK AMPLIFIER

The Synergy Audio WFO series of world class amplifiers feature high end Korean design, engineering and manufacturing, utilizing the best quality components to insure the best possible performance.

The WFO series of Mono amplifiers are at home in a daily driven vehicle, all out daily ground pounding demo driver or in the SPL competition lanes.

 Synergy Audio WFO 3.1D Specs:

• Power @ 1 Ohm: 3500w @ 14.4v
• Power @ 2 Ohm: 2350w @ 14.4v
• Power @ 4 Ohm: 1200w @ 14.4v
• Power @ 1 Ohm: 4685w @ 16v
• Frequency Response: 12hz – 250hz
• Signal to Noise Ratio: >100db
• Damping Factor: >200
• Subsonic Filter: 10hz – 50hz
• Low Pass Filter: 35hz – 250hz
• (2) 0 GA Power & Ground Terminals
• 16v Working Voltage
• 4 Power Transformers

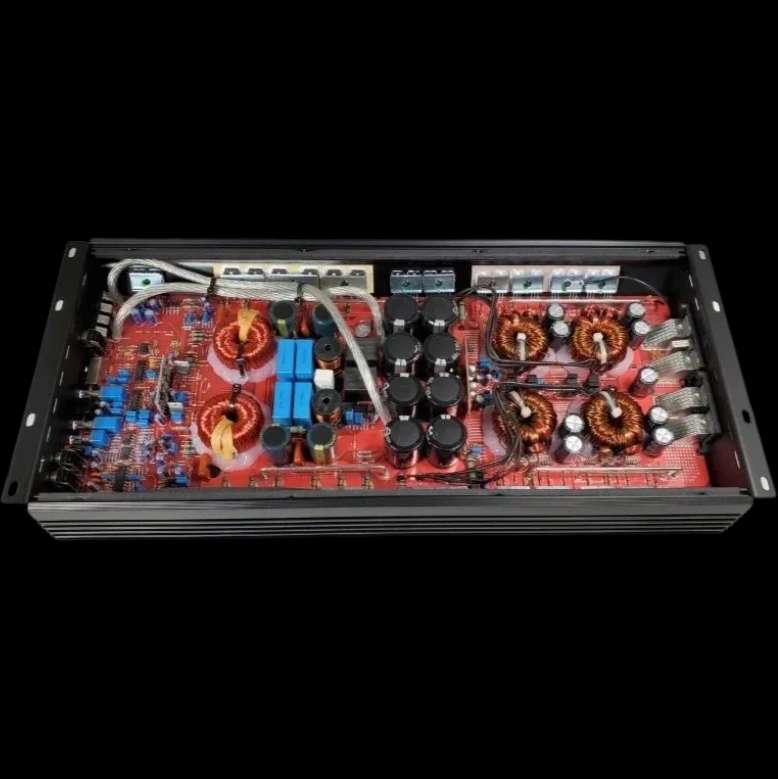

• Heavy Duty 2oz printed circut board
• Size: 480mm W x 210mm W x 62mm H

 All WFO series amplifier feature:

• Custom high mass, thermally optimized aluminum heat sink casing
• Overbuilt power supplies and output sections utilizing high grade components
• Heavy duty double sided through hole PCB’s with thick solid copper heavy duty traces

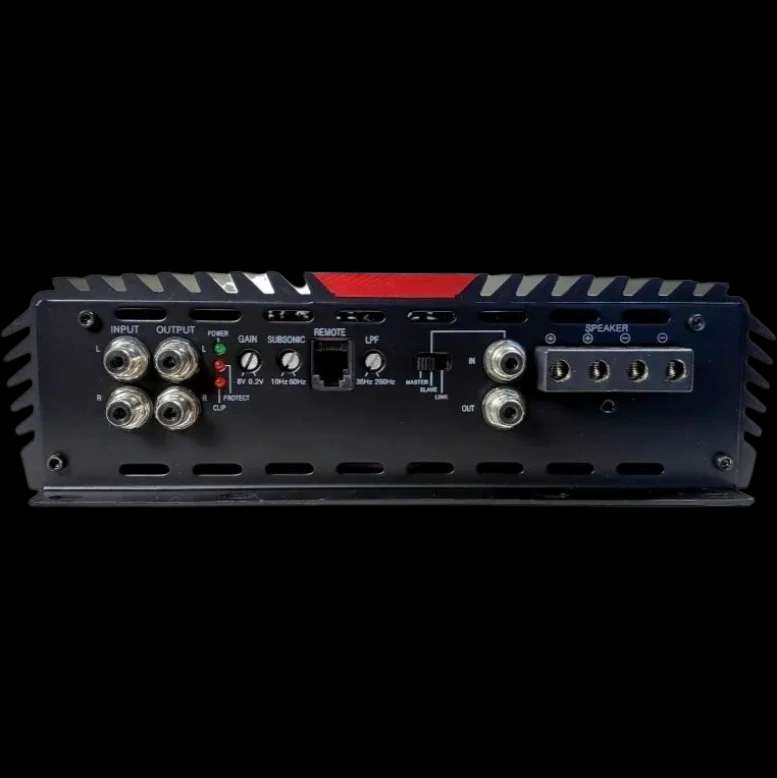

• Hand soldered nickel plated Tiffany RCA inputs/outputs

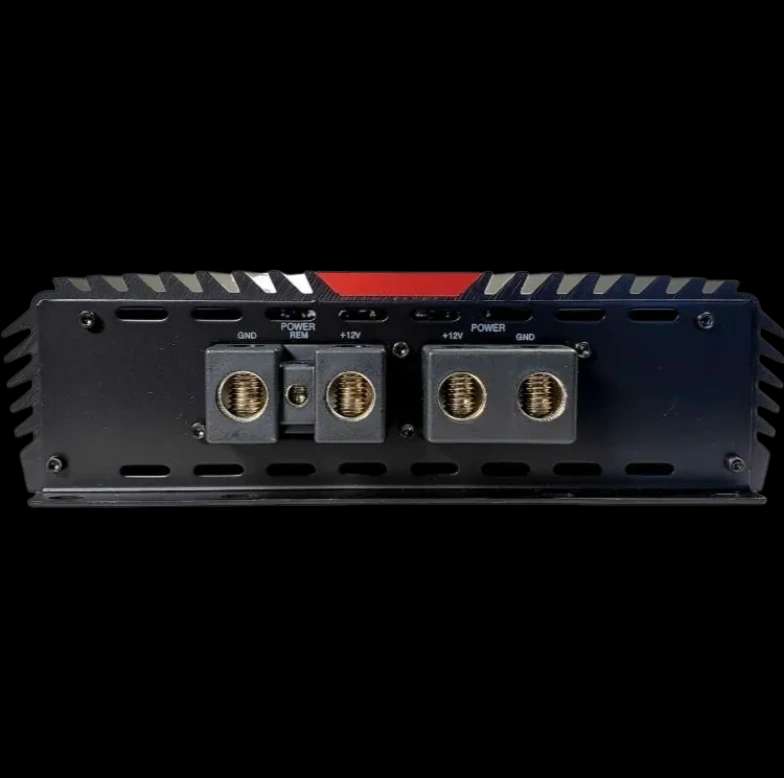

• Single 1/0 and 4 gauge nickel plated power and ground inputs
• Nickel plated 8 gauge speaker outputs
• Fully linkable/strappable (Mono-block)
• Input sensitivity 8V – 200mV
• +18db Remote Gain control
• Multi-way fully intelligent circuitry for maximum protection
