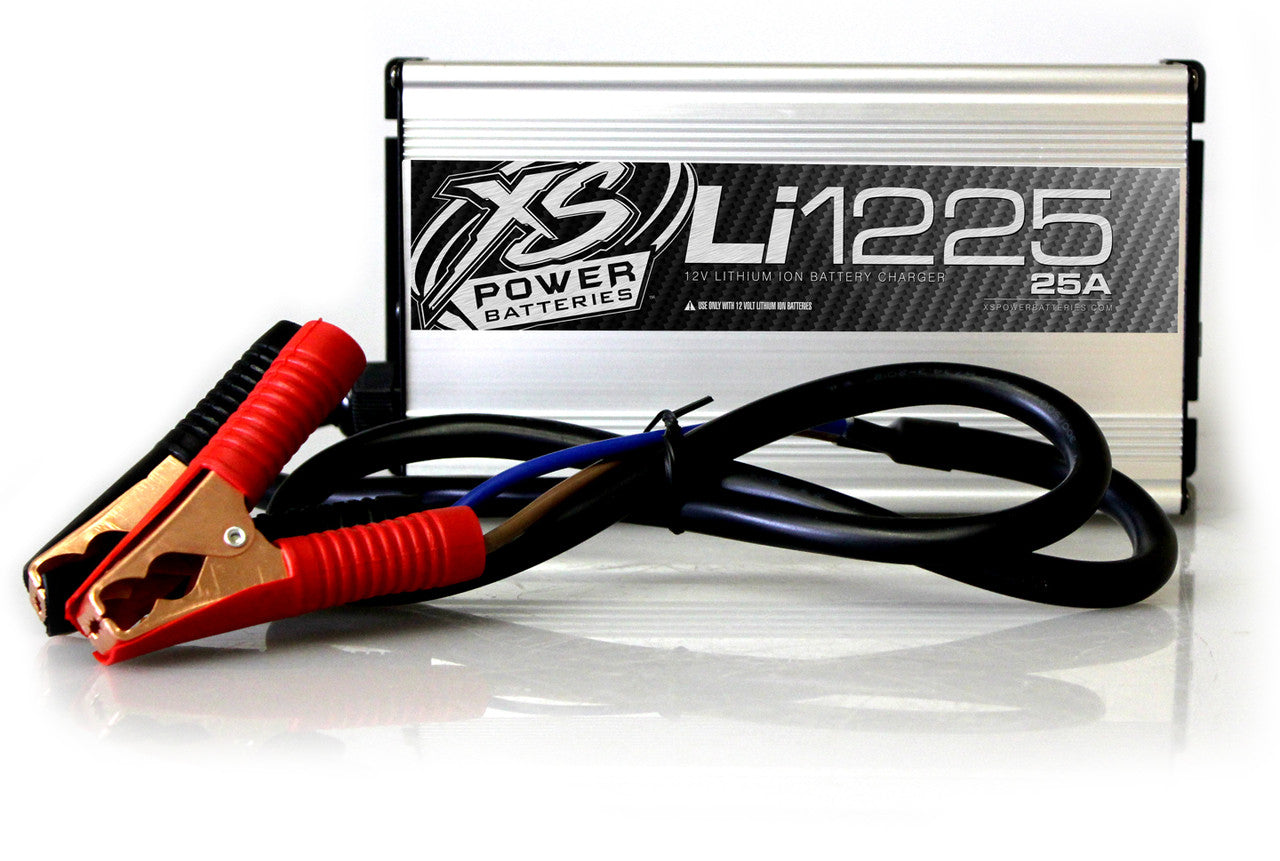

XS POWER Li1225 12 VOLT 15 AMP LITHIUM CAR AUDIO BATTERY CHARGER

XS Power Li1225 Lithium Car Audio Battery Charger

12V High Frequency Lithium Ion IntelliCHARGER, 25A
Dimensions (W x H x D) : 9.125” x 2.875” x 4.75” (231.8mm x 73mm x 120.7mm)

Weight: 5 lbs (2.27 kg)
AC Input Connections : 5.0’ (1.5 m) AWG 16
DC Output Connections : 3.9’ (1.19 m) AWG 8
AC Input Specifications
AC Input Voltage : 100-120 VAC, 47-63 Hz
AC Input Current : 10A RMS fuse protected

Voltage Monitoring
The battery’s terminal voltage is measured every five minutes by the on-board microprocessors and this information is analyzed in addition to the elapsed time to dynamically control the battery charger for optimum charging performance.

Automatic Computer Analysis/Auto Shutdown

The microprocessors will analyze the battery when connected. If the battery’s voltage is below 4V the charger may not recognize the battery is connected and will not begin charging. Likewise, if the battery will not come up to the correct voltage in a ten-hour period the microprocessor control board will automatically shut the charger off.

UL Approved Battery Cables

Six feet of durable battery cables are provided that are resistant to cuts and abrasion. The copper plated battery clamps are compact and custom designed easy connections. All clamp connections are soldered for maximum current flow.

Internal Cooling Fan

A cooling fan automatically operates during charging to keep the circuit and other internal components at a constant safe temperature.
